IGBT Micro Trench Discrete for PV/Eenergy Storage/EV Charger Application

IGBT Micro Trench Discrete for PV/Eenergy Storage/EV Charger Application Back

PDF

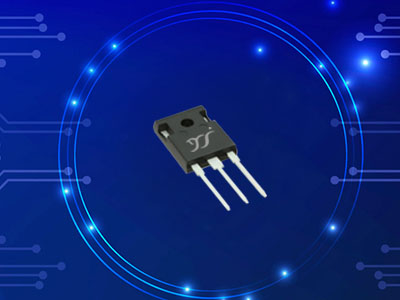

Introduction 1、TO-247-3L/TO-247-4L and other packages；
2、650V 50A, Si and SiC hybrid packaging products for different applications;
3、It is mainly used for PV/EV charger/Eenergy Storage applications, and adopts advanced trench design technology to meet the requirements of high efficiency of power devices in power conversion system；
4、Other market mainstream products can be completely pin to pin replaced by our related series products;
5、Use environmentally friendly materials and meet RoHS standards；

Features 1、1.6um micro-trench design, excellent product performance, with low Vce(sat) and fast switching characteristics;
2、S series product with medium speed for 20-30Khz application demand and H series product with high speed for 30-40Khz;
3、Tjmax=175℃,high reliability；

SPECIFICATION

DGZ50N65CTH2A DGZ50N65CTS2A
